Goal

This article shows how to create a reusable product template for a wide/large format poster by starting from a quotation and then converting it. You can also create templates directly from the product templates list, but this guide focuses on the conversion method.

You can convert from both quotations and orders. The result is a template that appears in the product templates list for future use.

Procedure

Step 1: Create a new quotation

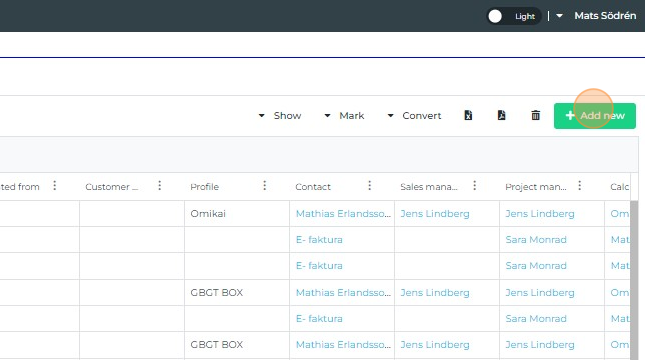

Open the quotations list and click the button labeled "Add new" in the upper-right corner.

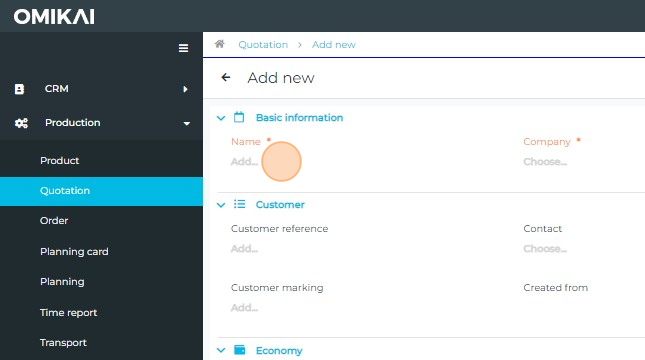

Step 2: Enter basic quotation details and save

Type a name for the quotation. Select a company. Click "Save" in the lower-right corner.


Step 3: Choose a Product Template as your starting point

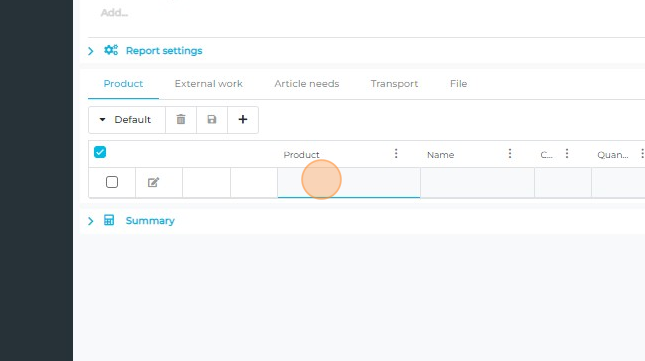

In the Product box, open the drop-down list and choose the template that best fits your job. For a poster, select "Sheet" (as in this example).


Step 4: Fill in product information

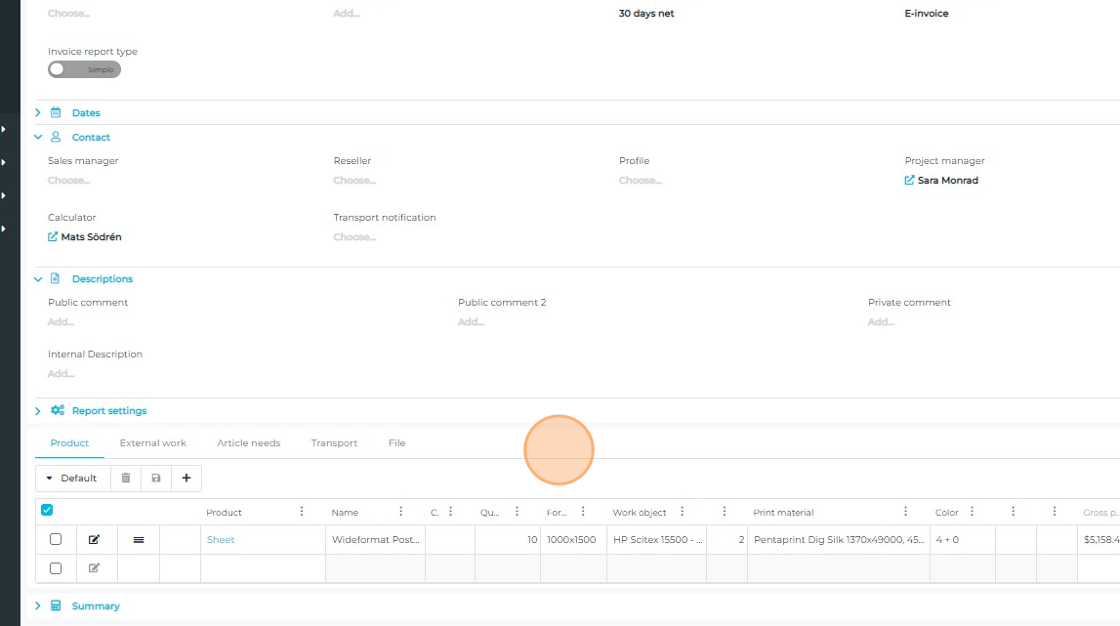

Enter product details: Custom Name (optional), Quantity, Format, Work Object, Number of Pages, Print Material, and Colors. Markups and Discount are optional. When finished, the line is ready.

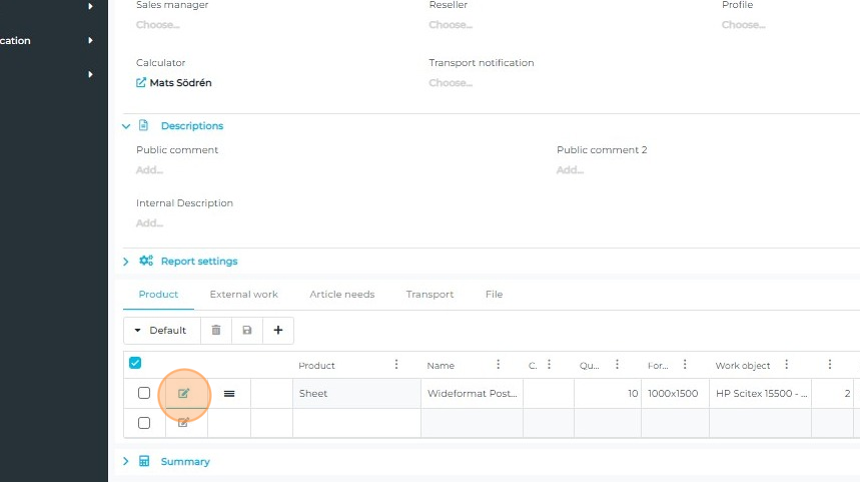

Step 5: Open the calculation spreadsheet

Click the paper-and-pencil icon to open the calculation spreadsheet for this product.


Idea
Tip: Check that the imposition is displayed. If it does not appear, there is usually an error in the calculation.

Step 6: Review and adjust the suggested operations

If you selected a standard template, the system suggests a list of operations. You can change or replace any operation. You can also add more operations if needed.


Step 7: Open the calculation page for your product

Open the calculation you just created to continue editing its details.

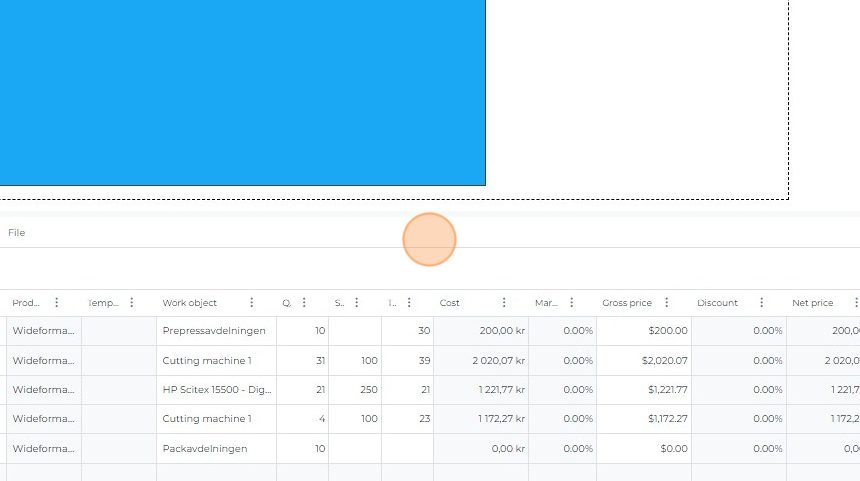

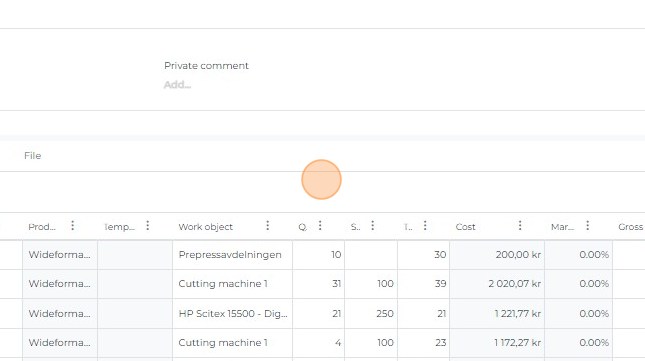

Step 8: View material requirements

In the calculation, open the operations section to review the steps. The material requirement appears in the Article Needs tab.

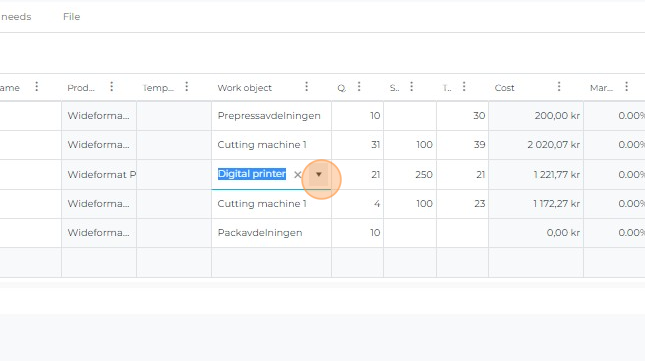

Step 9: Change the Work Object for an operation

To change a Work Object, click the current Work Object in that operation and select a new one from the drop-down list. You manage available Work Objects in the work objects list.

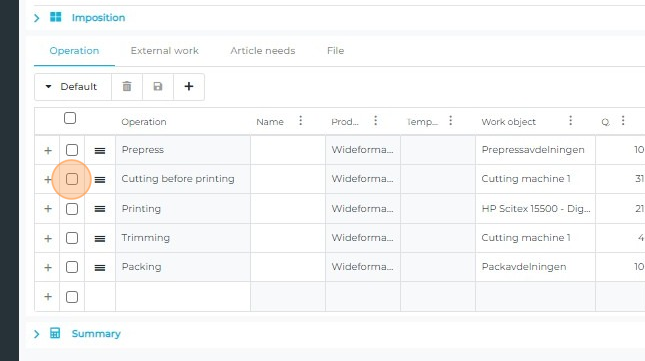

Step 10: Delete an operation

Select the checkbox for the operation, then click the trash can icon on the right.

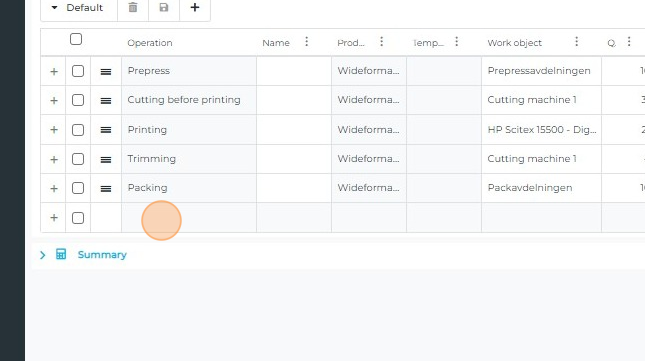

Step 11: Add an operation

Click in the empty row below the last operation and choose an operation from the drop-down list.

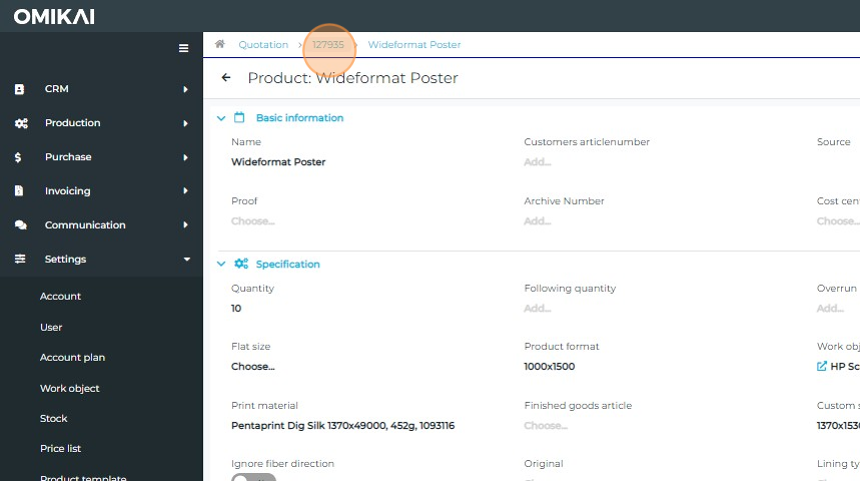

Step 12: Return to the calculation overview

Click the calculation number at the top-left to return to the main view of the calculation.

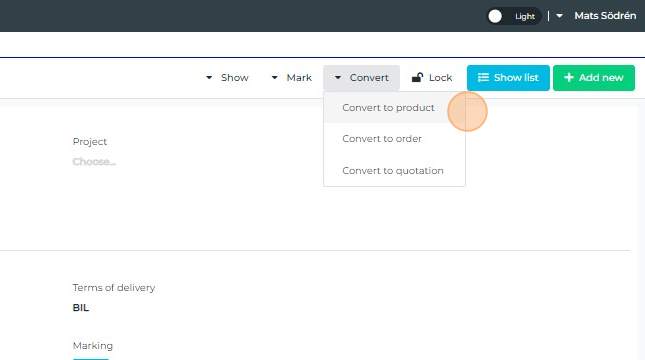

Step 13: Convert the calculation into a product

Click "Convert" and choose "Convert to Product". The new item will appear in products.

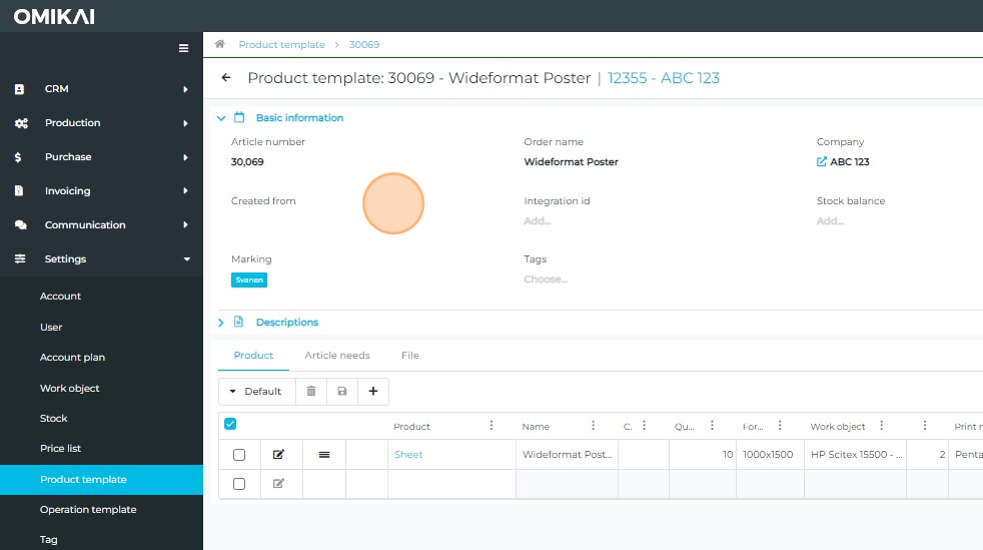

Step 14: Save as a product template

On the Product Template page, update the Basic Information as needed. You can change the Article Number and the product name. You can connect a company to the template so it is available only for that company. If you leave the company field empty, the template is global and available to all. In the project field, you can link a customer project. When finished, save. The template is now listed in product templates.


Idea
Tip: The template is now selectable for new calculations. Create a quick test calculation to confirm all operations, materials, and pricing work as expected. If needed, return and adjust the template.
